Floor Shot Blaster

Portable mobile Shot Blasters

Time:2024-08-13Hits:0

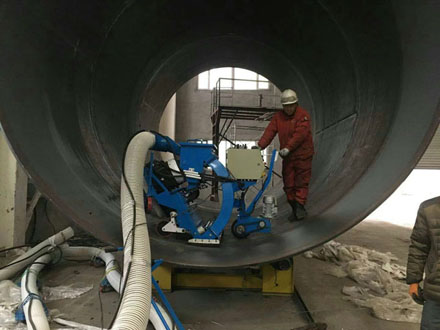

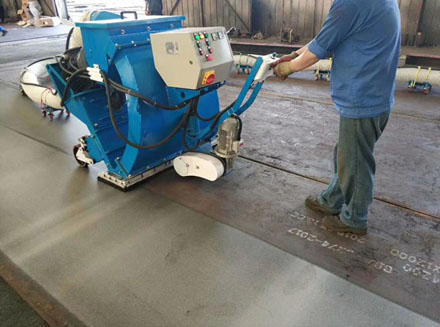

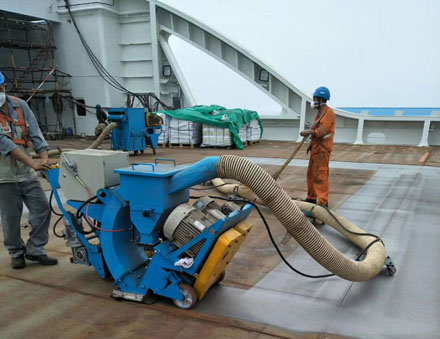

Road surface shot blasting machine, also known as mobile shot blasting machine, is widely used in industries such as concrete roughening, highway construction, marking cleaning, ship deck rust removal and cleaning, asphalt road surface cleaning and roughening. Clean up the floating slurry and impurities on the surface of the concrete; Clean the rust layer and dirt on the surface of the flat plate, and strengthen the internal stress of the steel plate; Road markings and airport markings can be cleared and erased; Can be used for steel bridge deck waterproofing engineering, roughening, etc.

Modle

LM-270

LM-350

LM-550

LM-850

diameter of shot blasting wheel(mm)

200

200

200

200

Working width (mm)

270

350

550

850

Concrete surface cleaning efficiency

≥80㎡/h

100㎡/h

400㎡/h

600㎡/h

steel plate cleaning efficiency

15-20㎡/h

20-25㎡/h

75-100㎡/h

100-160㎡/h

Dust removal pipe diameter (mm)

120mm

120mm

150mm

150mm

Steel shot size

1.2-1.5mm

1.2-1.5mm

1.5-1.8mm

1.5-1.8mm

Consumption of steel shot

10g/㎡

10g/㎡

10g/㎡

10g/㎡

Motor power (kw)

11KW

11KW

11KW*2

15KW*2

Weight (kg)

320KG

350KG

570KG

700KG

Walking speed

0.5~20m/min

Forward,backward

0.5~20m/min

Forward,backward

0.5~20m/min

Forward,backward

0.5~20m/min

Forward,backward
