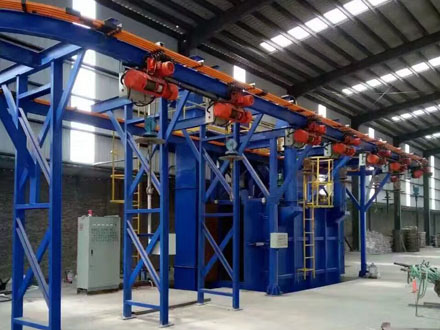

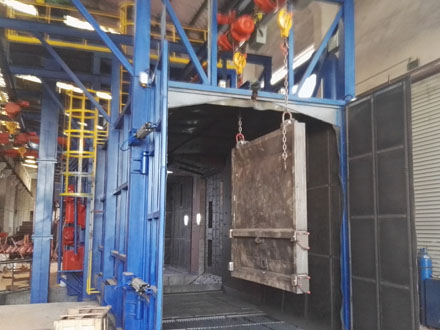

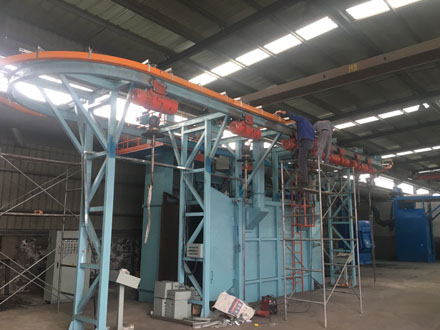

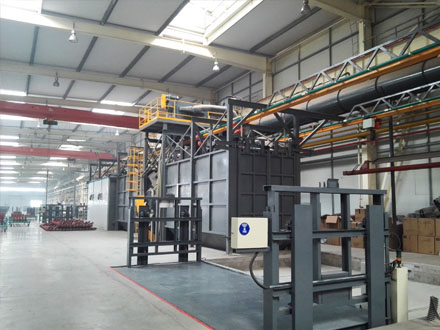

The QT37 hook passing shot blasting machine is mainly used for surface cleaning and strengthening of steel structural components, castings, aluminum alloy components, and other parts. Widely used in industries such as casting, forging machinery, and steel. The QT37 series cleaning machine has the characteristics of no pit, double hooks without changing tracks, compact structure, and high productivity.
Maximum external dimensions for work | Φ3000×2400 |
Maximum single weight of pendant | 1000kg |
Rotational speed | 3.14r/min |
shot-blasting machine | Q034(4 units) |
impeller diameter | Φ420mm |
Single shot blasting volume | 250kg/min |
Cleaning time for castings | 8-10min |
Cleaning time for rivet welded parts and forgings | 12-15min |
Clean the indoor cavity dimensions (length x width x height) | 3500×3500×3200mm |
Gate movement speed | 0.12m/s |
Steel shot diameter | Φ0.5-1.2mm |
Total air volume | 18000mз/h |
total power | ~85kw |
Maximum size of equipment (length x width x height) | ~11200×9800×8830 |
