PRODUCT FEATURE:
1.Large loading and high blasting coverage.
2.Large blasting capacity and high cleaning efficiency.

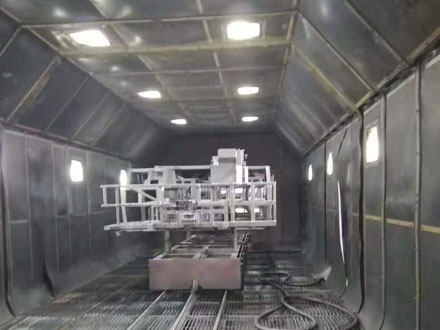

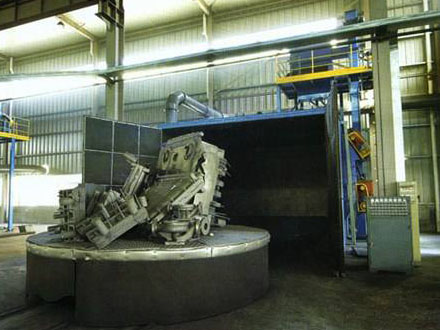

3.Static loading and unloading, fixed point blasting, work pieces positive and negative rotation automatically, complete cleaning.
4.Shot blasting and peening together, Large and heavy casting, sufficiently clean.
PRODUCT APPLICATION:
1.The equipment is suitable for surface cleaning of medium and large-sized, heavy type and complicated castings and forgings in marine engines, energy and power generation module, wind towers, pumps, turbines, machine tools, electrical machinery, chemical machinery, construction machinery and other industries.
Type Item | Q365C | Q3610 | Q3620 | Q765C | Q7610 | Q7620 | Q7630 | |
Cleaning workpiece size | mm | 2500x1300 | 2500x1500x280 | 4000x3000x700 | 2000x1000 | 2500x1500x280 | 4000x3000x700 | 4000x2000 |
Max. loading weight | Kg | 5000 | 10000 | 20000 | 5000 | 10000 | 20000 | 30000 |
Blasting capacity | Kg/min | 2x250 | 4x250 | 4x250 | 2x250 | 3x250 | 4x250 | 4x250 |
Lifting capacity of elevator | T/h | 40 | 60 | 75 | 30 | 45 | 60 | 60 |
Separating capacity of separator | T/h | 40 | 60 | 75 | 30 | 45 | 60 | 60 |
Ventilation volume | m³/h | 13200 | 240000 | 241000 | 11000 | 15000 | 21500 | 21500 |
Power(excluding dedusting) | Kw | 39.2 | 188.45 | 188.25 | 35.8 | 188.45 | 183.35 | 183.2 |
Outline dimensions | mm | 9000x4200x9290 | 14900x500x8700 | 16900x6540x10020 | 9000x5200x9290 | 14900x5200x6100 | 16900x6540x10028 | 9168x7680x10874 |
