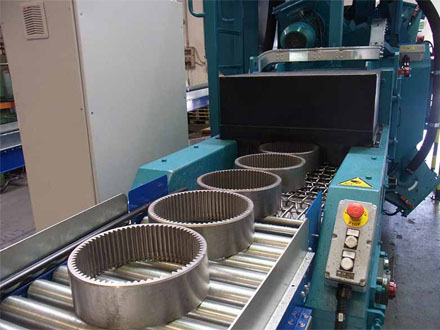

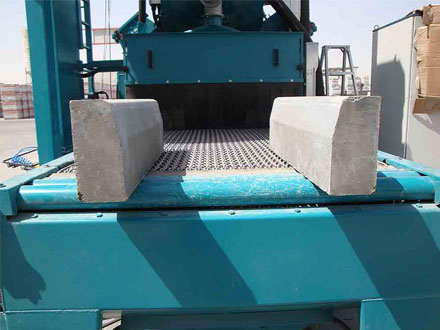

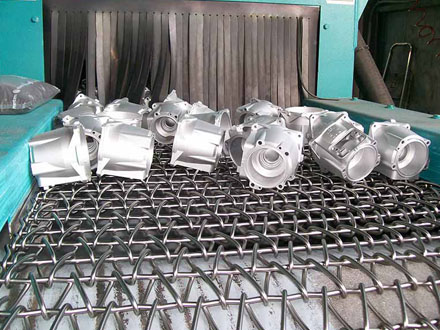

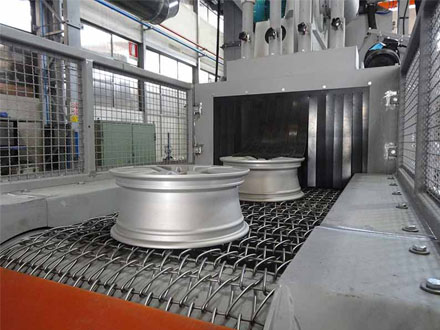

Wire mesh belt shot blasting machine or conveyor belt shot blasting machines is suitable for continuous blasting thin and collision-sensitive die castings, pressure castings, ferrous and non-ferrous castings, forgings, automotive accessories, and weldments. Workpiece weight ranging from 1kg to 100kg. A highly wear-resistant wire mesh belt, with tension adjustment, provides the part transport. Wire mesh belt width has 600mm, 800mm, 1000mm and 1200mm.
| Type | QWD60 | QWD80 | QWD100 | QWD120 |
| Max. workpiece dimension （mm） | 600 | 800 | 1000 | 1200 |
| Cleaning speed（m/min） | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Shot blasting volume（kg/min） | 4*120 | 4*120 | 4*180 | 4*250 |
