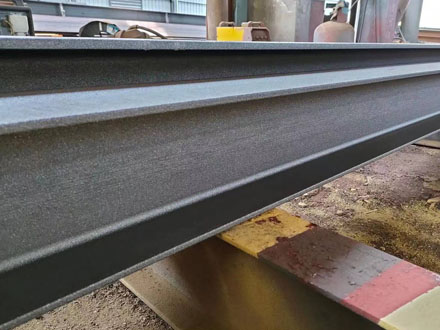

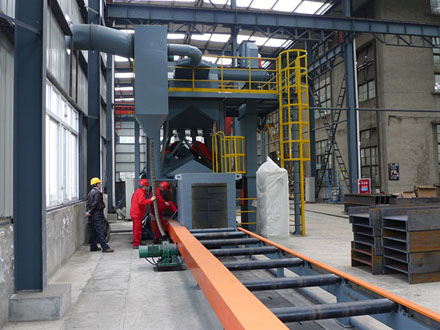

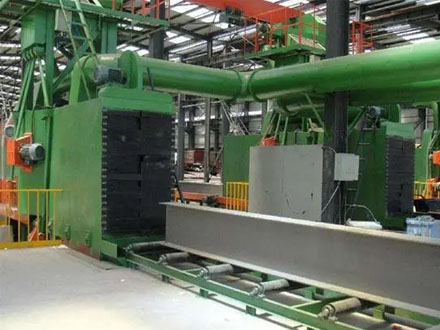

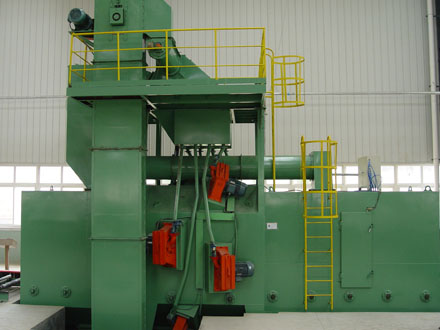

The QH69 series belongs to the roller shot blasting machine, mainly used in industries such as construction and bridges. Used for pressure relief and surface rust removal cleaning of large I-shaped steel and H-shaped steel structural components with higher dimensions.
Type | QH698 | QH6912 | QH6915 | QH6920 |
Clean width (mm) | 800 | 1200 | 1500 | 2000 |
opening size (mm) | 800×1600 | 1200×2000 | 1500×2000 | 2000×2000 |
Workpiece length (mm) | 3000-12000 | 6000-12000 | 6000-12000 | 6000-12000 |
Roller conveyor speed (m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
Shot blasting volume (kg/min) | 8×120 | 8×250 | 8×250 | 10×250 |
First steel shot loading quantity (kg) | 4000 | 6000 | 6000 | 6000 |
ventilation quantity(m³/h) | 20000 | 22000 | 25000 | 25000 |
Total power (excluding dust removal) (kw) | 90 | 130 | 130 | 160 |
