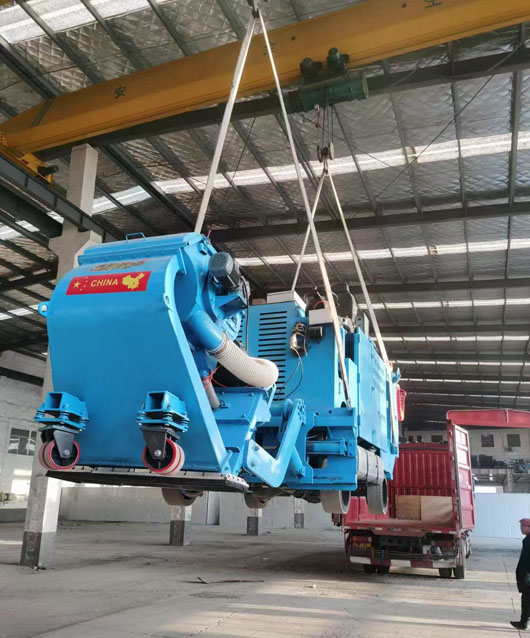

LM-1200 Truck-Mounted Mobile Shot Blasting Machine

Product Introduction

Product Features

• Integrated Truck-Mounted Design for Flexible Transfer: The integrated layout of shot blasting system, dust removal system and power system requires no repeated disassembly and transportation. Equipped with an independent diesel generator set, it solves the problem of on-site power supply restrictions. The machine can be transferred quickly across construction sections and work areas, effectively improving overall construction efficiency and shortening project cycles.

• 4WD Dual-Speed Driving for Strong Scene Adaptability: Equipped with a professional four-wheel drive traveling control system with high and low speed gears. The high-speed gear supports a maximum transfer speed of 30km/h for long-distance site movement; the low-speed precise speed regulation is as low as 0.3m/min, ensuring uniform and stable operation. It delivers consistent polishing and rust removal effects on steel plates and bridge decks with no missing blasting or uneven surface treatment.

• 1200mm Ultra-Wide Working Width & High Construction Efficiency: With a large effective cleaning width of 1200mm, the equipment covers a wider working area in a single pass. It achieves efficient operation for different working conditions, reaching 100-200㎡/h for steel plate rust removal and 300-500㎡/h for concrete surface roughening. It greatly accelerates the progress of large-area projects and reduces labor and time costs.

• Multi-Cartridge Dust Removal for Dust-Free & Eco-Friendly Operation: Fitted with 14 sets of high-performance filter cartridges and an intelligent automatic ash cleaning system, the equipment efficiently filters construction dust in real time and maintains stable dust removal performance for a long time. It realizes zero-dust operation and fully meets the latest environmental protection standards for municipal and highway construction.

• Premium Configuration for Stable & Durable Operation: The core shot blasting component adopts an integral separator wheel structure with high strength and excellent wear resistance for prolonged service life. Matched with a 450L large-capacity diesel fuel tank, the machine supports long-term uninterrupted continuous operation. It runs stably with a low failure rate, perfectly adapting to high-intensity and long-cycle engineering construction scenarios.

Technical Parameters

• Model: LM-1200 Truck-Mounted Mobile Shot Blasting Machine

• Effective Cleaning Width: 1200mm (47.2 inches)

• Core Component: Integral Separator Wheel

• Abrasive Storage Capacity: 100kg

• Travel Speed Range: 0-200m/min

• Maximum Transfer Speed: 30km/h

• Minimum Working Speed: 0.3m/min

• Working Efficiency: 100-200㎡/h (steel surface); 300-500㎡/h (concrete surface)

• Power Supply Mode: Self-powered by diesel generator set

• Applicable Fuel: Diesel

• Fuel Tank Capacity: 450L

• Output Voltage: 380V / 220V

• Dust Removal System: 14 cartridge filter elements, automatic ash cleaning function

• Driving Mode: Four-Wheel Drive (4WD)

• Total Weight: 6800kg (Blasting host: 1000kg, Truck body: 5800kg)
