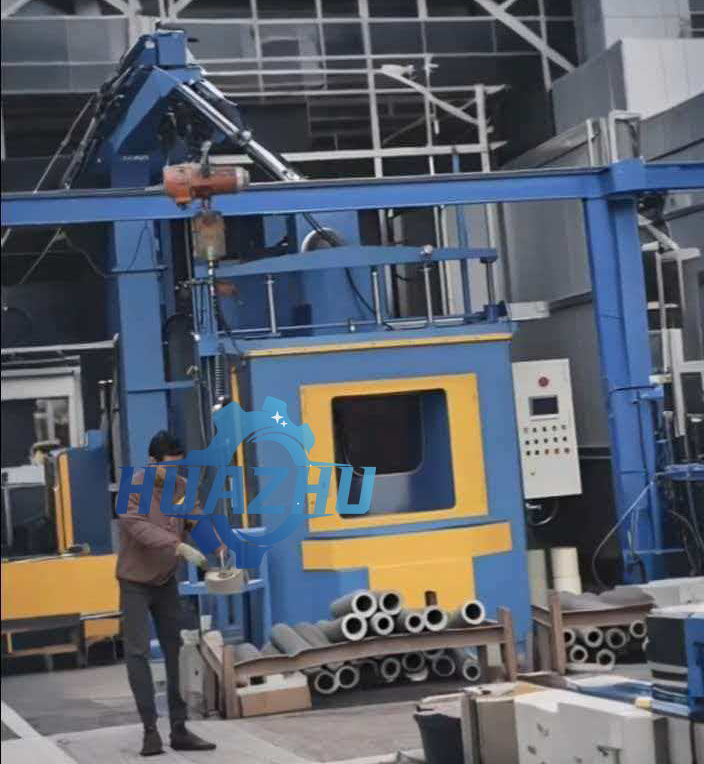

Sandblasting equipment for the inner wall of shell casings

Sandblasting machine for the inner wall of shell shells is intended exclusively for internal shot blasting of steel cylindrical cylinders to remove rust, scale, etc.

Characteristics of the sandblasting machine for the inner wall of shell shells：

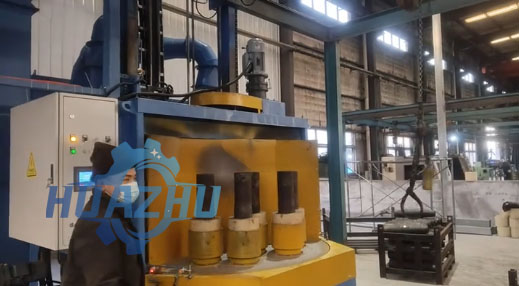

1. Multi-position or turret (carousel) tablefor sequential feeding of cylinders into the chamber;

2. special internal shot blasting module, which provides a directed flow of shot into the cylinder;

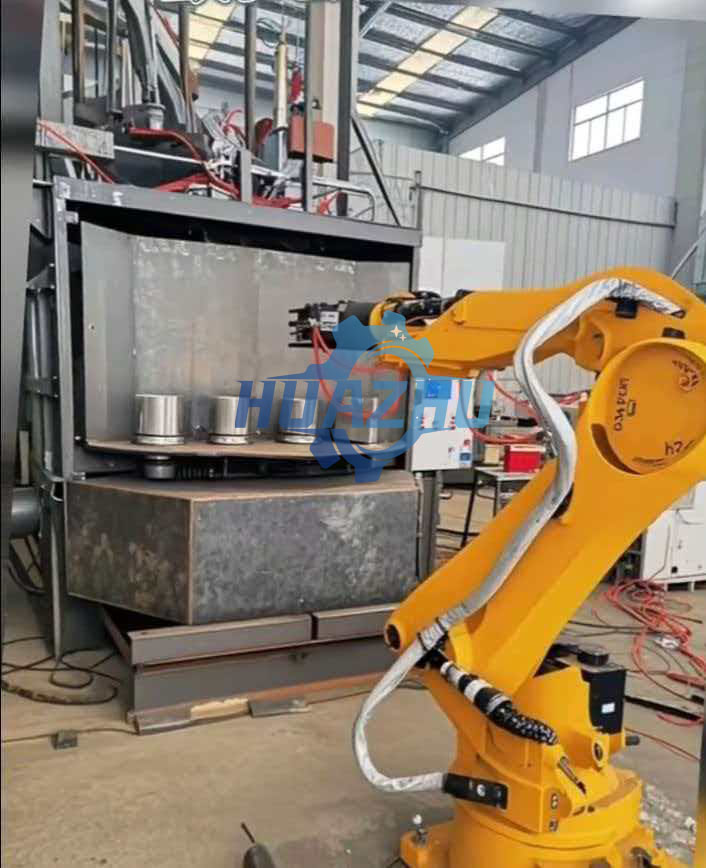

3. automated robotic cylinder loading and unloading system;

4. Completely sealed.Reinforced lining (manganese/wear-resistant steel);

5. The design allows for operation with an internal shot blasting head;

6. Penetration depth greater than 800 millimeters;

7. 6-8 positions (guaranteed productivity of 40 pcs/hour);

8. Rotation: 10-30 rpm (adjustable);

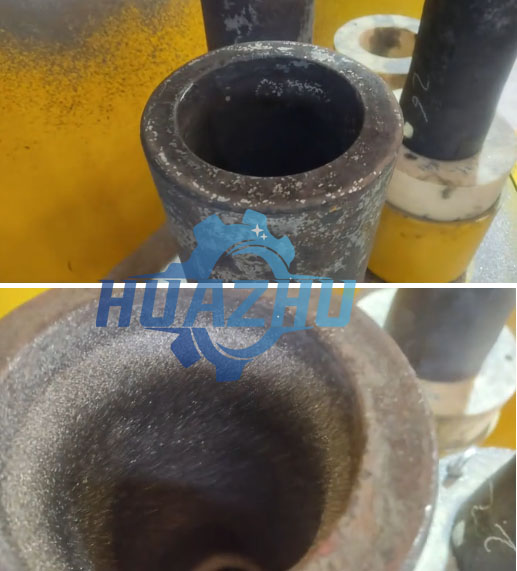

9. Degree of cleaning: internal surface Sa 2.5;

10. Roughness: Rz 40-80 (micron);

Technical Specifications：

Process flow of shell sandblasting machine for shells：

1.The robot takes the cylinder from the feeder.

2.Puts it in the position of a multi-position or turret table.

3.In the chamber, an internal injector/turbine feeds the shot into the cylinder:

  (3.1)othe torch is directed along the axis;

  (3.2)othe nozzle/spray head rotates or moves forward.

4.The cylinder can rotate around its axis for uniform cleaning.

5.Upon completion, the turret feeds the finished part into the robot zone.

6.The robot removes the cylinder and places it on the output conveyor/rack.
